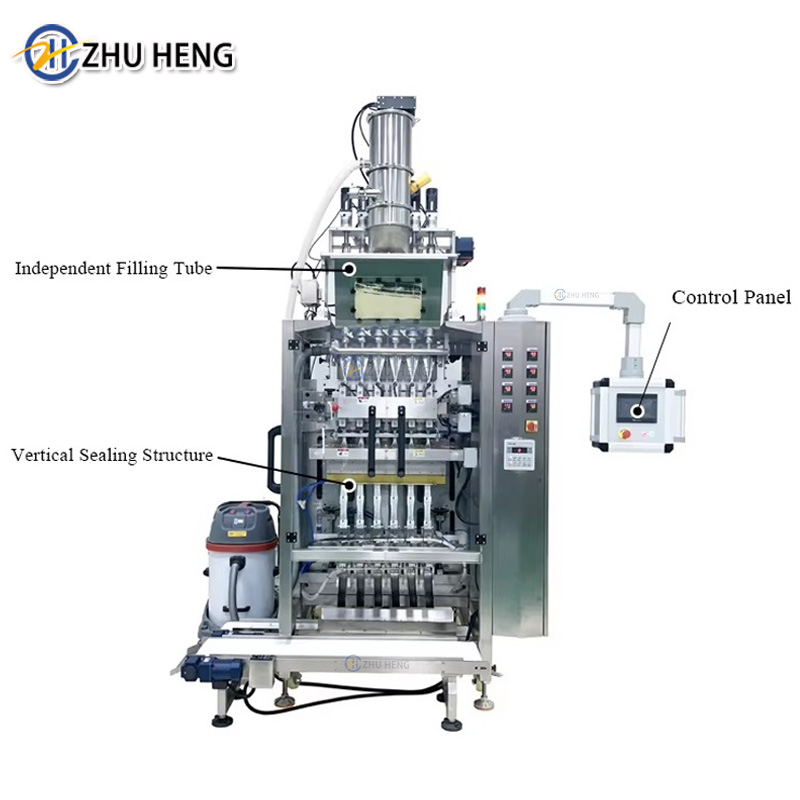

The 6-lane Packaging Machine is an automated packaging device that processes products on 6 parallel lanes simultaneously. This increases the output and efficiency of the packaging process, making it ideal for high-volume production lines in industries such as food, pharmaceuticals or consumer goods.
Model:Multi lines packaging machine
Lanes:6
Package shape:4 side sealer bag
Filling:granule,powder
Stick Filling Weight:5 gr. – 20 gr.
Packaging speed:40 to 50 bag/min per line
Bag length:20-120mm
Bag width:10 to 60mm / 620mm
Diameter of packaging film:φ350mm
Power source:3-phase,200VAC,7.5kW at peak,3.5kW at average
Air consumption:0.4MPa、100NL/min
Note:
1) The speed of packaging subject to the filling volume, size of stick, characteristic of powder and accuracy requirement.
2) The filling accuracy subject to the packaging speed, filling volume and characteristic of powder.
Mainly adopts 304 stainless steel structure.
Product contact parts adopt 304 stainless steel.
Heavy-duty design is suitable for high-speed operation.
No film design waste, no need to reserve film edge.
Drum-type film segmentation device.
PLC and touch screen HMI control.
Guide servo electric film pulling device is integrated with horizontal seal.
Each channel adopts separate servo screw quantitative, and the quantitative range is automatically adjusted by PLC.
Visible hopper with openable door.
Intelligent PID temperature controller.
Multi lanes packaging machine is widely used in the packaging of powder and granular materials in the food, pharmaceutical, pesticide and other industries. Medicinal powder, chocolate powder, nutritional powder, herbal powder, coffee powder, grain powder, milk powder, tea powder, etc.
1.Before packaged, the multi lines packing machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
FAQ
Q1.Are you a manufacturer or trader?
A: Shanghai Zhuheng Industiral Co,. Ltd is a manufacturer, located in Shanghai, China. We have our own product design team.
Q2.What are the typical components of a multi-lane packing machine?
Feeding system: Delivers materials to be packaged.
Metering system: Measures the product for consistent filling.
Bagging system: Forms and seals the packaging bags.
Control system: Manages the entire packaging process.
Discharge system: Conveys finished packages out of the machine.
Q3.What factors should I consider when choosing a multi-lane packing machine?
The type of product you will be packaging
Your desired production speed
The size and weight of your packages
Q4. What kind of shipping methods can you provide?
A: By sea, by air and by international express.We will send the photo and video of machine to customer to check the machine running situation before delivery.
Q5. Do you accept customer logos and customization?
A: We accept all kinds of customization and logos for all products.
Q6. How about the product packaging? Is it easy to be damaged during transportation?
A: No. We use wooden boxes, which are very safe.
