Vertical Form Fill Seal Multi Lane Packaging Machine is an affordable solution for packing single dosage usage sachets specially for free flowing and semi viscous liquids, pastes and small dosage powders.Depending on the sachet size up to 12 tracks / lanes can be handled. The operating cycle speed is 40-60 cycles per minute per track.
Packaging materials:composite aluminum film/aluminum firm/paper film,etc
Bag length:40mm-150mm
Maximum film width:480mm
Closed pattern:tripe
Packing speed:20-80 bags/min
Power supply:AC220/1PH or AC380/3PH
Packing material thickness:0.06-0.1mm
Bag width:15-50mm
Sealing width:5-10mm
Cutting method:flat cutting/zig-zag cutting/rounded cutting/special-shaped cutting
Air source:0.6-0.8Mpa
Remark:Customized specifications are available according to your actual application

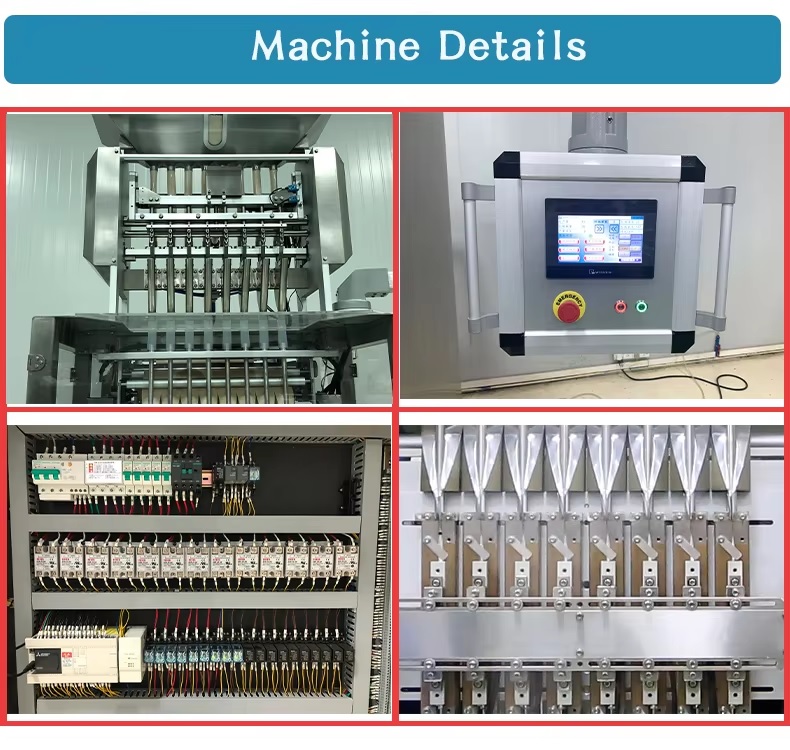

1. The whole machine is controlled by PLC program. The function parameters are set by man-machine interface touch screen.The control is stable and the operation is simple.
2. It has functions of automatic filling, measuring, bag making, sealing, printing batch, counting, and finished product output.
3. The horizontal seal adopts independent servo control, the structure is simple and reliable.
4. The film running stable and has the function of cursor correction and compensation.
5. The storage bin adopts continuous automatic vacuum feeding;
6. The filling machine is detachable, easy to install, easy to clean and disinfect.
7. 2 to 12 lanes can be packed according to the width of the bag.
8. The machine can be connected with the mending line and automatic cartonning equipment to be a complete line.
Multi row Packing Machine can be packaged in lotions, creams, shampoos, conditioners and many other products in stick packaging.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
FAQ
1.Tell me about your product details:
●What kind of product you have.
● the size of your product.
●What’s the weight of your product.
●What’s the speed requirement?
2.How easy is it to operate packaging equipment?
The good news is that as long as your packaging system isn’t hyper-customized, the equipment is pretty easy to use! Most of our equipment does not require advanced technical knowledge to operate.
3.How much does multi line packaging machine cost?
There is no quick, easy answer to this question. Packaging machinery is specific to the customer, so arriving at ‘standard pricing’ isn’t usually practical. Pricing largely depends upon your unique needs, such as the products you want to package, the speeds you would like to achieve, your sizes or the complexity of your process. Contact us to get a specific quote.
4.Which machines are available in-stock?
If your needs are fairly standard and straightforward, you may be able to snag an In-Stock Machine and get it delivered in just a few weeks! Contact us to ask about our current inventory.
5.What is your after sales services?
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
● After the commissioning, we will package the equipment by standard export package for shipment.
● Engineers, sales managers and after-sales service managers will form an online after-sales team to follow up on customers’ projects.
TAG:Multi-Line Packaging Machine,Packing Machine
