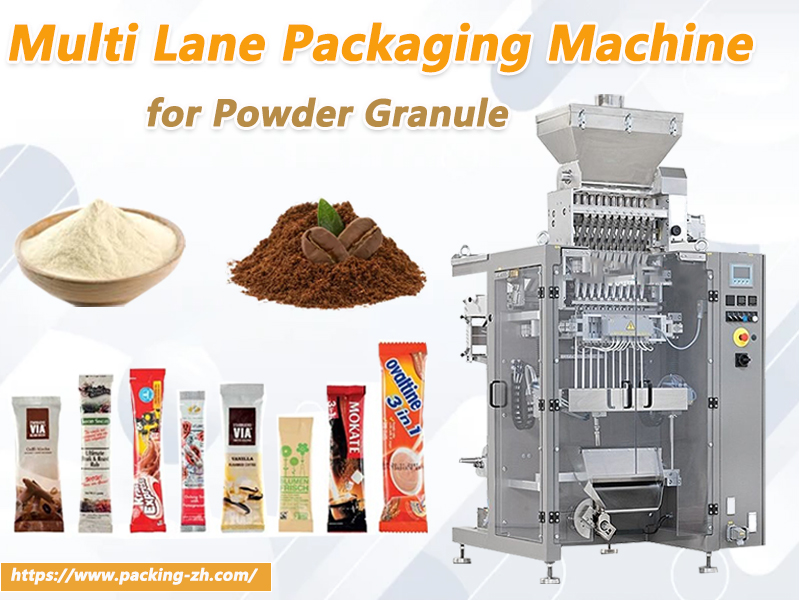

The High Output Multi Lanes Stick Packing Machine is a highly efficient automated packaging equipment designed to process multiple packaging lanes at the same time, thereby significantly improving production efficiency. The 1-50g Sachet & Pouch Filling Packing Machine is ideal for high-capacity production, ensuring precision and efficiency in small batch filling and sealing.
Production Speed:About 40-50pcs/min for one lane
Sachet length:Max.180mm
Sachet width:Max.120mm
Filling method:pump/weigher/cup filler, according to your product
Weight range:1-150ml,1-100g
Film material :1. Composite film 2. aluminium film
Cutting type:1. straight cutting 2. zigzag cutting 3. continuous cutting
Remark:Customized specifications are available according to your actual application
1. Multi lanes machine can produce multi lanes bags at same time.
2. Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
4. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
5. PLC controller, high function and control the whole machine’s work steps.
6. 2 to 12 lanes can be packed according to the width of the bag;
7. The machine can be connected with the mending line and automatic cartonning equipment to be a complete line.
The Sachet Multilane Packing Machine is designed for packaging a variety of products in small, lightweight sachets. Its applications include:
Food Products: Sugar, spices, seasoning blends, powdered drinks, sauces, and instant soups.
Pharmaceuticals: Single-dose packets of powders, granules, or liquid medicines.
Cosmetics: Sample sachets of creams, lotions, or serums.
Pet Care: Single-serving pouches for pet food or treats.
Agricultural Products: Fertilizers, seeds, and plant nutrients.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
FAQ
1.Tell me about your product details:
●What kind of product you have.
● the size of your product.
●What’s the weight of your product.
●What’s the speed requirement?
2.How easy is it to operate packaging equipment?
The good news is that as long as your packaging system isn’t hyper-customized, the equipment is pretty easy to use! Most of our equipment does not require advanced technical knowledge to operate.
3.How much does multi line packaging machine cost?
There is no quick, easy answer to this question. Packaging machinery is specific to the customer, so arriving at ‘standard pricing’ isn’t usually practical. Pricing largely depends upon your unique needs, such as the products you want to package, the speeds you would like to achieve, your sizes or the complexity of your process. Contact us to get a specific quote.
4.Which machines are available in-stock?
If your needs are fairly standard and straightforward, you may be able to snag an In-Stock Machine and get it delivered in just a few weeks! Contact us to ask about our current inventory.
5.What is your after sales services?
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
● After the commissioning, we will package the equipment by standard export package for shipment.
● Engineers, sales managers and after-sales service managers will form an online after-sales team to follow up on customers’ projects.
TAG:Multi-Line Packaging Machine,Packing Machine,High Output Multi Lanes Stick Packing Machine
