The Multi Lane High-Efficiency Packaging Machine is an automated system designed to weigh and pack a variety of products quickly and accurately.Multiple lanes simultaneously measure and dispense sauces into small packages, greatly improving packaging efficiency and accuracy in industries such as food, pharmaceuticals and cosmetics.

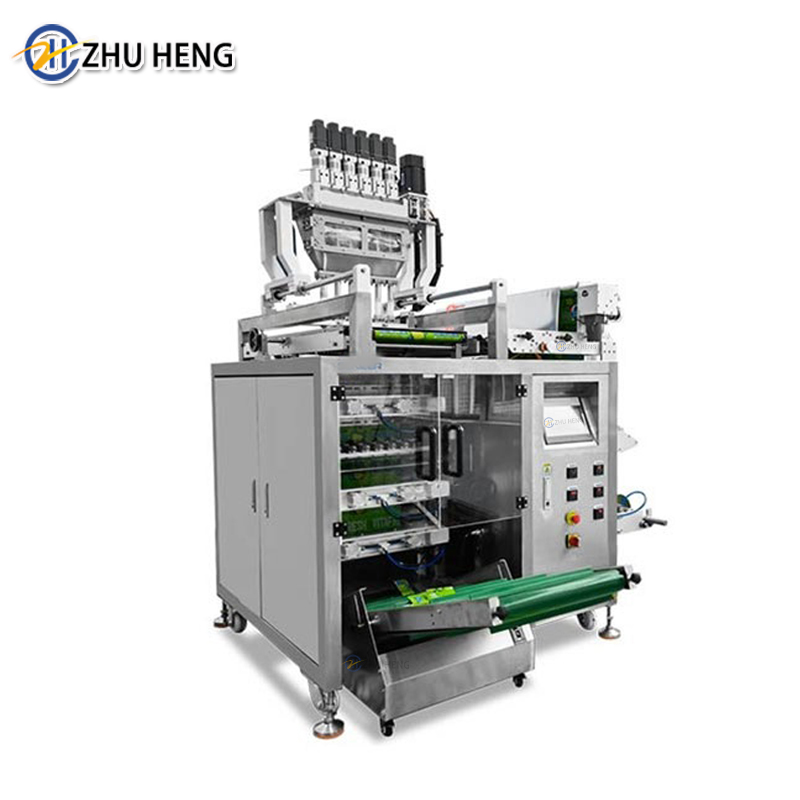

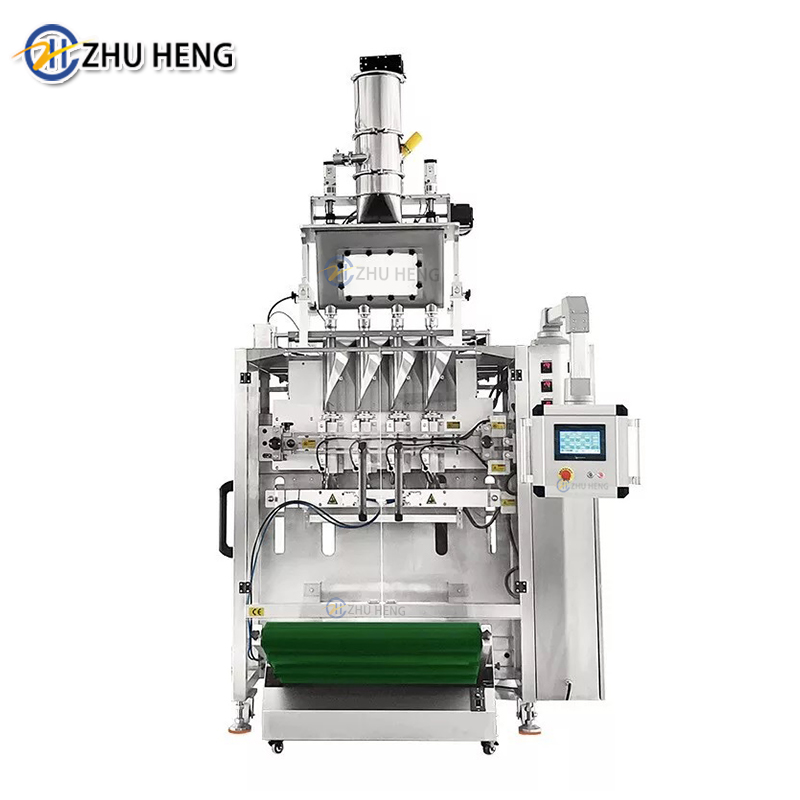

Multi Lane High-Efficiency Packaging Machine
Sealing Style:Back Sealing
Speed:60 pcs/ min (Depends upon the type of product & quantity to be filled)
No of tracks:Depends upon the width of the pouch
Laminate Specification:
Width:600 mm max.
Roll Dia:450mm. max.
Reel Core I.D.:150/76 mm
Maximum Pouch Length:150 mm
Filling Range:1 ml to 50 ml for liquids and pastes,Liquids, pastes
Power Consumption:6 KW

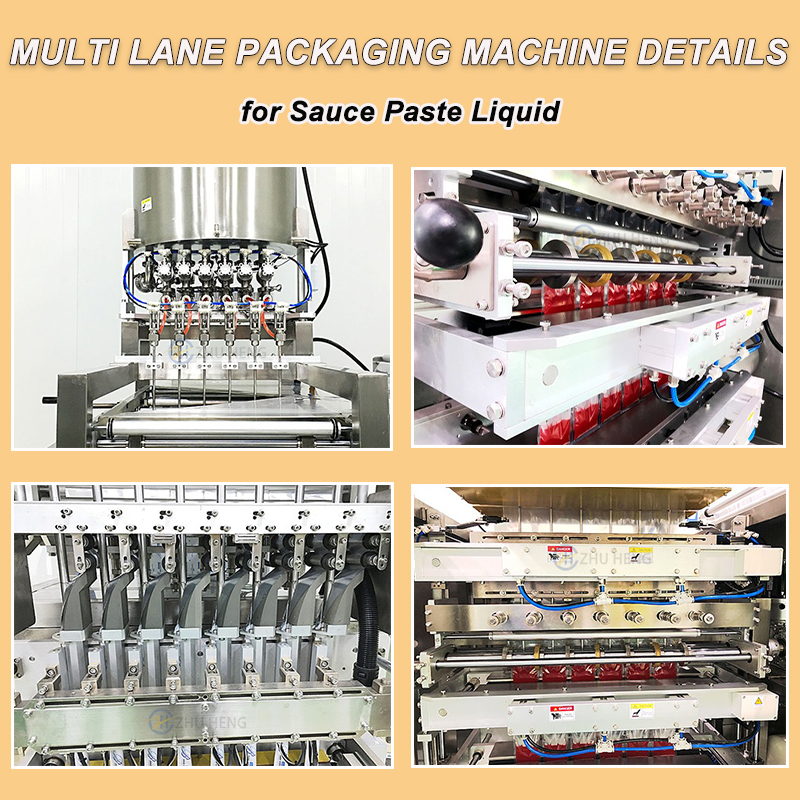

1.Fill anything from 2 to 12 lanes depending on the sachet’s dimension.It can be linked to the automated cartoning machine and the mending line to form a whole line.
2.The PLC software controls the whole machine.Man-machine interaction touch screens configure the function parameters.
3.This machine can automatically fill,measure,bag-make,seal,print batches,count, and finishes final products.
4.The horizontal seal uses independent servo control and has a straightforward, sturdy design.
5.The film runs steadily and has cursor adjustment and correction.
6.Vacuum feeds the storage bin continuously.
7.The filling device is removable, simple to set up, and quick to clean and sanitize.
Multi Row High-Efficiency Packaging Machine is very suitable for liquid metering packaging in food, pharmaceutical, chemical, cosmetic and other industries, such as milk, honey, sauce, ketchup, shampoo, conditioner, oil, rock sugar, cream.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
FAQ
Q1.Are you a manufacturer or trader?
A: Shanghai Zhuheng Industiral Co,. Ltd is a manufacturer, located in Shanghai, China. We have our own product design team.
Q2.What are the typical components of a multi-lane packing machine?
Feeding system: Delivers materials to be packaged.
Metering system: Measures the product for consistent filling.
Bagging system: Forms and seals the packaging bags.
Control system: Manages the entire packaging process.
Discharge system: Conveys finished packages out of the machine.
Q3.What factors should I consider when choosing a multi-lane packing machine?
The type of product you will be packaging
Your desired production speed
The size and weight of your packages
Q4. What kind of shipping methods can you provide?
A: By sea, by air and by international express.We will send the photo and video of machine to customer to check the machine running situation before delivery.
Q5. Do you accept customer logos and customization?
A: We accept all kinds of customization and logos for all products.
Q6. How about the product packaging? Is it easy to be damaged during transportation?
A: No. We use wooden boxes, which are very safe.
