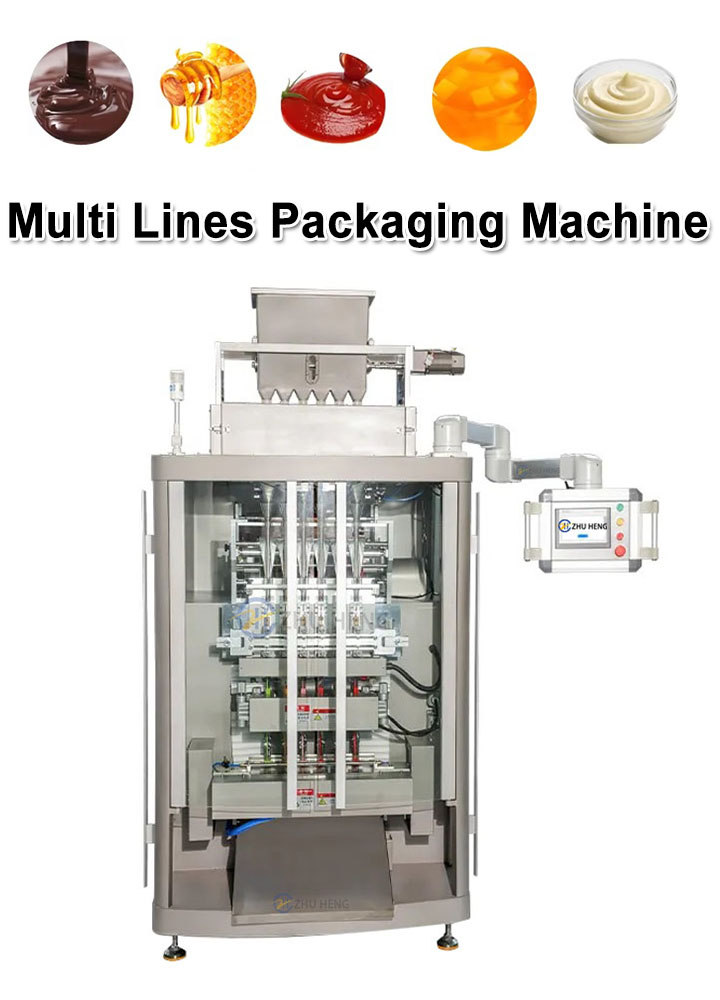

Multi-lane Stick Powder Filling Packaging Machine is a type of multi-lane packaging equipment designed for high-efficiency production in the food,pharmaceutical,or cosmetics industries.Packaging Machine typically supports packing sachets, pouches, or small packets in a simultaneous multi-lane setup.This allows for increased throughput while maintaining precision and consistent sealing.
High-Performance Packaging Machines are ideal for granular, liquid, or powder products and are equipped with features like auto filling, sealing, and cutting, making them suitable for high-volume packaging lines.
Lanes:4-6
Package shape:4 side sealer bag
Filling:granule,powder
Stick Filling Weight:5 gr. – 20 gr.
Packaging speed:15 to 80 bag/min per line
Bag length:20-120mm
Bag width:10 to 60mm / 620mm
Diameter of packaging film:φ350mm
Power source:3-phase,200VAC,7.5kW at peak,3.5kW at average
Air consumption:0.4MPa、100NL/min
Weight:700kg
1. The above detection date is for reference only. The actual data shall prevail.
2. Special requirements can be customized according to customer requirements.
Product Feeding & Dispensing: Precisely measures and dispenses the product into each lane for uniform filling.
Film Unwinding & Forming: Pulls and forms packaging film into individual pouches or sachets for each lane.
Sealing & Cutting: Seals each filled pouch, maintaining airtight and leak-proof integrity, and cuts them accurately.
Date Coding & Marking: Adds necessary information like batch codes or expiry dates to the packages.
Error Detection & Rejection: Detects packaging errors, ensuring only correctly sealed and filled pouches are passed on.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
A. Pre-sales:
1. Provide customers with real quotations according to customer requirements, and record feedback in time according to customer requirements;
2. Sign a standardized product ordering contract and clarify responsibilities and other related matters;
3. Provide one-year warranty, lifelong maintenance service, and be responsible for debugging products before delivery;
B. After-sales:
1. If the customer’s product fails, the domestic region will solve the problem for you as soon as possible, and the foreign region will provide you with a solution.
2. Product repair during the warranty period, after the warranty period, can also provide repairs, if the parts need to be replaced, the product parts will be provided at cost price.
FAQ
Q1.Are you a manufacturer or trader?
A: Shanghai Zhuheng Industiral Co,. Ltd is a manufacturer, located in Shanghai, China. We have our own product design team.
Q2.What are the typical components of a multi-lane packing machine?
Feeding system: Delivers materials to be packaged.
Metering system: Measures the product for consistent filling.
Bagging system: Forms and seals the packaging bags.
Control system: Manages the entire packaging process.
Discharge system: Conveys finished packages out of the machine.
Q3.What factors should I consider when choosing a multi-lane packing machine?
The type of product you will be packaging
Your desired production speed
The size and weight of your packages
Q4. What kind of shipping methods can you provide?
A: By sea, by air and by international express.We will send the photo and video of machine to customer to check the machine running situation before delivery.
Q5. Do you accept customer logos and customization?
A: We accept all kinds of customization and logos for all products.
Q6. How about the product packaging? Is it easy to be damaged during transportation?
A: No. We use wooden boxes, which are very safe.
