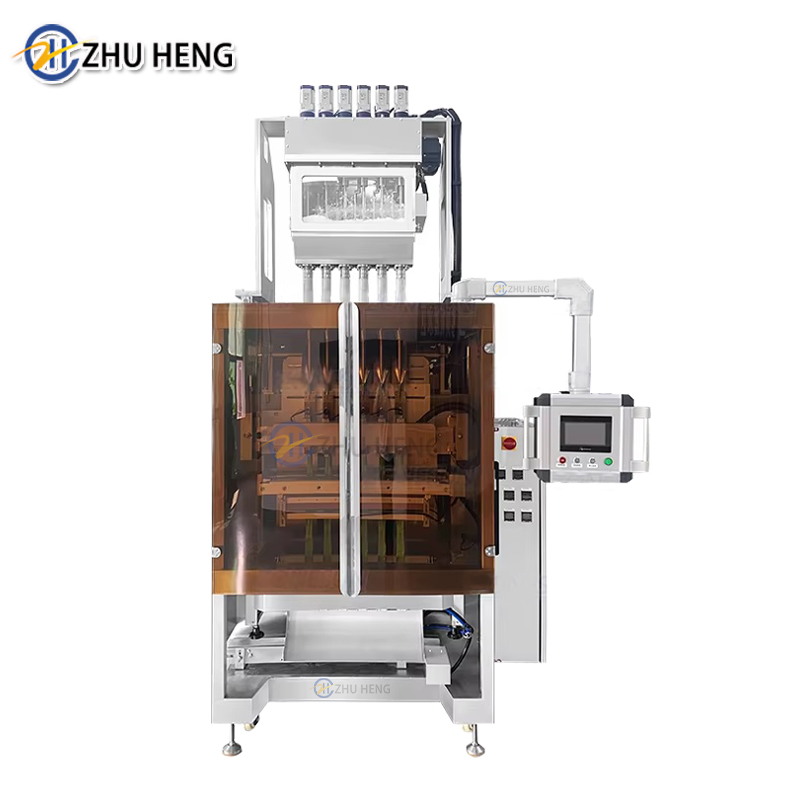

High Speed High Stability Multi-line Granule 4-Side Seal Sachet Packaging Machine which combines the mass production capability by many sequences with rapidity and operativity.This model is designed for mass production, and is designed to enable 4-side sealing of multiple lines for filling powder and granules.Sealing, filling, slitting, and cutting are continuously performed according to the number of lines for packaging.
Lanes:4-12
Package shape:4 side sealer bag
Filling:granule,powder
Stick Filling Weight:5 gr. – 20 gr.
Packaging speed:15 to 80 bag/min per line
Bag length:20-120mm
Bag width:10 to 60mm / 620mm
Diameter of packaging film:φ350mm
Power source:3-phase,200VAC,7.5kW at peak,3.5kW at average
Air consumption:0.4MPa、100NL/min
Weight:700kg
1. The above detection date is for reference only. The actual data shall prevail.
2. Special requirements can be customized according to customer requirements.
1. The whole machine is controlled by PLC program. The function parameters are set by man-machine interface touch screen.
2. It has functions of automatic filling, measuring, bag making, sealing, printing batch, counting, and finished product output;
3. The horizontal seal adopts independent servo control, the structure is simple and reliable;
4. The film running stable and has the function of cursor correction and compensation;
5. The storage bin adopts continuous automatic vacuum feeding;
6. The filling machine is detachable, easy to install, easy to clean and disinfect;
7.2 to 12 lanes can be packed according to the width of the bag.
Multi Lane stick packaging Machine is suitable for many kinds of loose granule products, such as sugar, salt, small grains, seeds, spice, etc.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
1.Before the products are sold, we will go through strict inspection,and the products you sign for have no quality problems.
2.The products provided to customers are all produced by the original factory, and have factory data accessories.
3.During the warranty period, our company will repair the damaged parts due to quality reasons, and the damage of the parts outside the warranty period. The provided accessories only charge the cost. If the equipment is damaged due to human factors, the parts repaired or provided by our company are calculated at the cost.
FAQ
Q1.Are you a manufacturer or trader?
A: Shanghai Zhuheng Industiral Co,. Ltd is a manufacturer, located in Shanghai, China. We have our own product design team.
Q2.What are the typical components of a multi-lane packing machine?
Feeding system: Delivers materials to be packaged.
Metering system: Measures the product for consistent filling.
Bagging system: Forms and seals the packaging bags.
Control system: Manages the entire packaging process.
Discharge system: Conveys finished packages out of the machine.
Q3.What factors should I consider when choosing a multi-lane packing machine?
The type of product you will be packaging
Your desired production speed
The size and weight of your packages
Q4. What kind of shipping methods can you provide?
A: By sea, by air and by international express. After confirming your order, we will update you the production details by email and photos.
Q5. Do you accept customer logos and customization?
A: We accept all kinds of customization and logos for all products.
Q6. How about the product packaging? Is it easy to be damaged during transportation?
A: No. We use wooden boxes, which are very safe.
