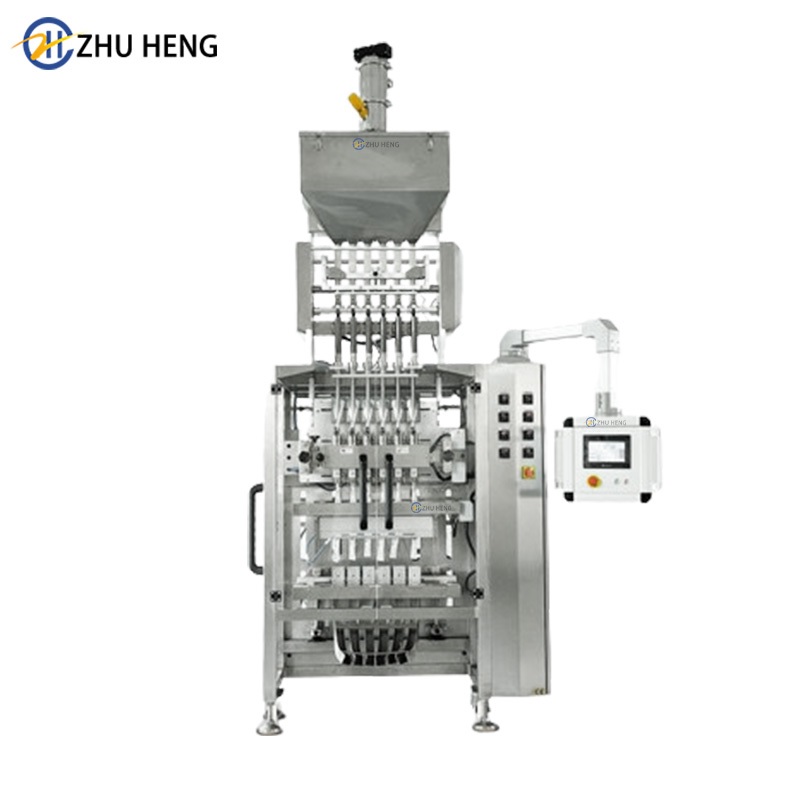

Model:Multi lines packaging machine
Stick Package Width (Fixed):35 mm
Stick Package Length Range:40 – 180 mm
Stick Filling Weight:5 gr. – 20 gr.
Filling System:Screw
Width Of Packaging Roll Film:240 mm
Packing Roll Core / Tube Diameter:76 mm – 3 rulo
Number Of Lines:2-8 lines
Production Capacity:40-50 packs / min.(per lane)
Machine Frame / Body Quality:304 quality stainless chrome steel
Weight:600 kg.
Electricity Requirement:220 V. 50 hz. 3.5 kw / s.
Note:
1) The speed of packaging subject to the filling volume, size of stick, characteristic of powder and accuracy requirement.
2) The filling accuracy subject to the packaging speed, filling volume and characteristic of powder.
1. Pneumatic control for measuring and bag making, easy to operate; less wearing parts in the future, which can reduce the accessories changing.
2. Material: Machine frame and parts contacting with material adopt 304SUS.
3. It adopts photo electricity to position precisely and reserve the completeness of pattern. Machine alarms for photo electric abnormality and stops automatically for cursor abnormality.
4.Intelligent temperature controller to control the sealing temperature in horizontal and vertical directions.
5.Machine box is designed to be more user-friendly, with transparent acrylic protection cover to observe the running status of machine. The box is convenient to open for daily cleaning and maintenance.
6.It’s equipped with feeder, which can realize conveying material from low to high, with two limits up and down. It will start feeding automatically for material lacking and stop for full material, which can reduce the manual feeding time.
7.Allowing for your company a wide range of products, this machine is customized with non-standard specification, which is suitable for not only essential water but also latex and cream, one machine multi-purpose.
With different dosing system, it is suitable for liquid and paste, powder and granule products, such as tomato sauce, shrimp pastem,mayonnaise,cat liquid snack, olive oil, pharma powder and so on.
1.Before packaged, the multi lines packing machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
FAQ
Q1.Are you a manufacturer or trader?
A: Shanghai Zhuheng Industiral Co,. Ltd is a manufacturer, located in Shanghai, China. We have our own product design team.
Q2.What are the typical components of a multi-lane packing machine?
Feeding system: Delivers materials to be packaged.
Metering system: Measures the product for consistent filling.
Bagging system: Forms and seals the packaging bags.
Control system: Manages the entire packaging process.
Discharge system: Conveys finished packages out of the machine.
Q3.What factors should I consider when choosing a multi-lane packing machine?
The type of product you will be packaging
Your desired production speed
The size and weight of your packages
Q4. What kind of shipping methods can you provide?
A: By sea, by air and by international express.We will send the photo and video of machine to customer to check the machine running situation before delivery.
Q5. Do you accept customer logos and customization?
A: We accept all kinds of customization and logos for all products.
Q6. How about the product packaging? Is it easy to be damaged during transportation?
A: No. We use wooden boxes, which are very safe.
